# Encyclopedia of Crystallographic Prototypes

• M. J. Mehl, D. Hicks, C. Toher, O. Levy, R. M. Hanson, G. L. W. Hart, and S. Curtarolo, The AFLOW Library of Crystallographic Prototypes: Part 1, Comp. Mat. Sci. 136, S1-S828 (2017). (doi=10.1016/j.commatsci.2017.01.017)
• D. Hicks, M. J. Mehl, E. Gossett, C. Toher, O. Levy, R. M. Hanson, G. L. W. Hart, and S. Curtarolo, The AFLOW Library of Crystallographic Prototypes: Part 2, Comp. Mat. Sci. 161, S1-S1011 (2019). (doi=10.1016/j.commatsci.2018.10.043)
• D. Hicks, M.J. Mehl, M. Esters, C. Oses, O. Levy, G.L.W. Hart, C. Toher, and S. Curtarolo, The AFLOW Library of Crystallographic Prototypes: Part 3, Comp. Mat. Sci. 199, 110450 (2021). (doi=10.1016/j.commatsci.2021.110450)

## The Tetragonal Crystal System

In the tetragonal system, like the orthorhombic system, the conventional unit cell is a parallelepiped, but two sides are equal, so that $a = b$ and $c \ne a$, while $\alpha = \beta = \gamma = \pi/2$, and this is a special case of the orthorhombic system. The primitive vectors of the conventional unit cell are $\begin{array}{ccc} \mathbf{A}_1 & = & a \, \mathbf{\hat{x}} \nonumber \\ \mathbf{A}_2 & = & a \, \mathbf{\hat{y}} \nonumber \\ \mathbf{A}_3 & = & c \, \mathbf{\hat{z}}. \end{array}$ The volume of the conventional unit cell is $V = a^2 \, c .$
Given the similarity between the tetragonal and orthorhombic crystal system, we might expect that the tetragonal system would have four Bravais lattices as well, but the additional symmetry generated because $b = a$ reduces this to two. When $b \rightarrow a$, the base-centered orthorhombic Bravais lattice becomes a simple tetragonal lattice, while the face-centered orthorhombic lattice can be shown to be identical to a body-centered tetragonal cell (see pgs. 115-117 of N. W. Ashcroft and N. D. Mermin, Solid State Physics).

### Lattice 8: Simple Tetragonal

The simple tetragonal Bravais lattice is identical to the conventional cell $\begin{array}{ccc} \mathbf{a}_1 & = & a \, \mathbf{\hat{x}} \nonumber \\ \mathbf{a}_2 & = & a \, \mathbf{\hat{y}} \nonumber \\ \mathbf{a}_3 & = & c \, \mathbf{\hat{z}}, \end{array}$ with volume $V = a^2 \, c .$
The space groups associated with the simple tetragonal lattice are $\begin{array}{lll} 75. ~ \text{P4} & 76. ~ \text{P4_{1}} & 77. ~ \text{P4_{2}} \\ 78. ~ \text{P4_{3}} & 81. ~ \text{P\overline{4}} & 83. ~ \text{P4/m} \\ 84. ~ \text{P4_{2}/m} & 85. ~ \text{P4/n} & 86. ~ \text{P4_{2}/n} \\ 89. ~ \text{P422} & 90. ~ \text{P42_{1}2} & 91. ~ \text{P4_{1}22} \\ 92. ~ \text{P4_{1}2_{1}2} & 93. ~ \text{P4_{2}22} & 94. ~ \text{P4_{2}2_{1}2} \\ 95. ~ \text{P4_{3}22} & 96. ~ \text{P4_{3}2_{1}2} & 99. ~ \text{P4mm} \\ 100. ~ \text{P4bm} & 101. ~ \text{P4_{2}cm} & 102. ~ \text{P4_{2}nm} \\ 103. ~ \text{P4cc} & 104. ~ \text{P4nc} & 105. ~ \text{P4_{2}mc} \\ 106. ~ \text{P4_{2}bc} & 111. ~ \text{P\overline{4}2m} & 112. ~ \text{P\overline{4}2c} \\ 113. ~ \text{P\overline{4}2_{1}m} & 114. ~ \text{P\overline{4}2_{1}c} & 115. ~ \text{P\overline{4}m2} \\ 116. ~ \text{P\overline{4}c2} & 117. ~ \text{P\overline{4}b2} & 118. ~ \text{P\overline{4}n2} \\ 123. ~ \text{P4/mmm} & 124. ~ \text{P4/mcc} & 125. ~ \text{P4/nbm} \\ 126. ~ \text{P4/nnc} & 127. ~ \text{P4/mbm} & 128. ~ \text{P4/mnc} \\ 129. ~ \text{P4/nmm} & 130. ~ \text{P4/ncc} & 131. ~ \text{P4_{2}/mmc} \\ 132. ~ \text{P4_{2}/mcm} & 133. ~ \text{P4_{2}/nbc} & 134. ~ \text{P4_{2}/nnm} \\ 135. ~ \text{P4_{2}/mbc} & 136. ~ \text{P4_{2}/mnm} & 137. ~ \text{P4_{2}/nmc} \\ 138. ~ \text{P4_{2}/ncm} & ~ & ~ \\ \end{array}$

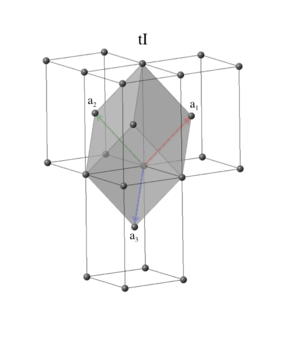

### Lattice 9: Body-Centered Tetragonal

The body-centered tetragonal system has the same point group and translational symmetry as the simple tetragonal system, with the addition of a translation to the center of the parallelepiped. Our standard form of the primitive vectors is $\begin{array}{ccc} \mathbf{a}_1 & = & - \frac{a}{2} \, \mathbf{\hat{x}} + \frac{a}{2} \, \mathbf{\hat{y}} + \frac{c}{2} \, \mathbf{\hat{z}} \nonumber \\ \mathbf{a}_2 & = & ~ \frac{a}{2} \, \mathbf{\hat{x}} - \frac{a}{2} \, \mathbf{\hat{y}} + \frac{c}{2} \, \mathbf{\hat{z}} \nonumber \\ \mathbf{a}_3 & = & ~ \frac{a}{2} \, \mathbf{\hat{x}} + \frac{a}{2} \, \mathbf{\hat{y}} - \frac{c}{2} \, \mathbf{\hat{z}}. \end{array}$ The volume of the primitive body-centered tetragonal unit cell is $V = \frac{a^2 \, c}{2}.$ There are two primitive body-centered tetragonal unit cells in the conventional tetragonal unit cell.

The space groups associated with this lattice, all of which begin with $\text{I}$ in the standard notation, are $\begin{array}{lll} 79. ~ \text{I4} & 80. ~ \text{I4_{1}} & 82. ~ \text{I\overline{4}} \\ 87. ~ \text{I4/m} & 88. ~ \text{I4_{1}/a} & 97. ~ \text{I422} \\ 98. ~ \text{I4_{1}22} & 107. ~ \text{I4mm} & 108. ~ \text{I4cm} \\ 109. ~ \text{I4_{1}md} & 110. ~ \text{I4_{1}cd} & 119. ~ \text{I\overline{4}m2} \\ 120. ~ \text{I\overline{4}c2} & 121. ~ \text{I\overline{4}2m} & 122. ~ \text{I\overline{4}2d} \\ 139. ~ \text{I4/mmm} & 140. ~ \text{I4/mcm} & 141. ~ \text{I4_{1}/amd} \\ 142. ~ \text{I4_{1}/acd} & ~ & \\ \end{array}$
