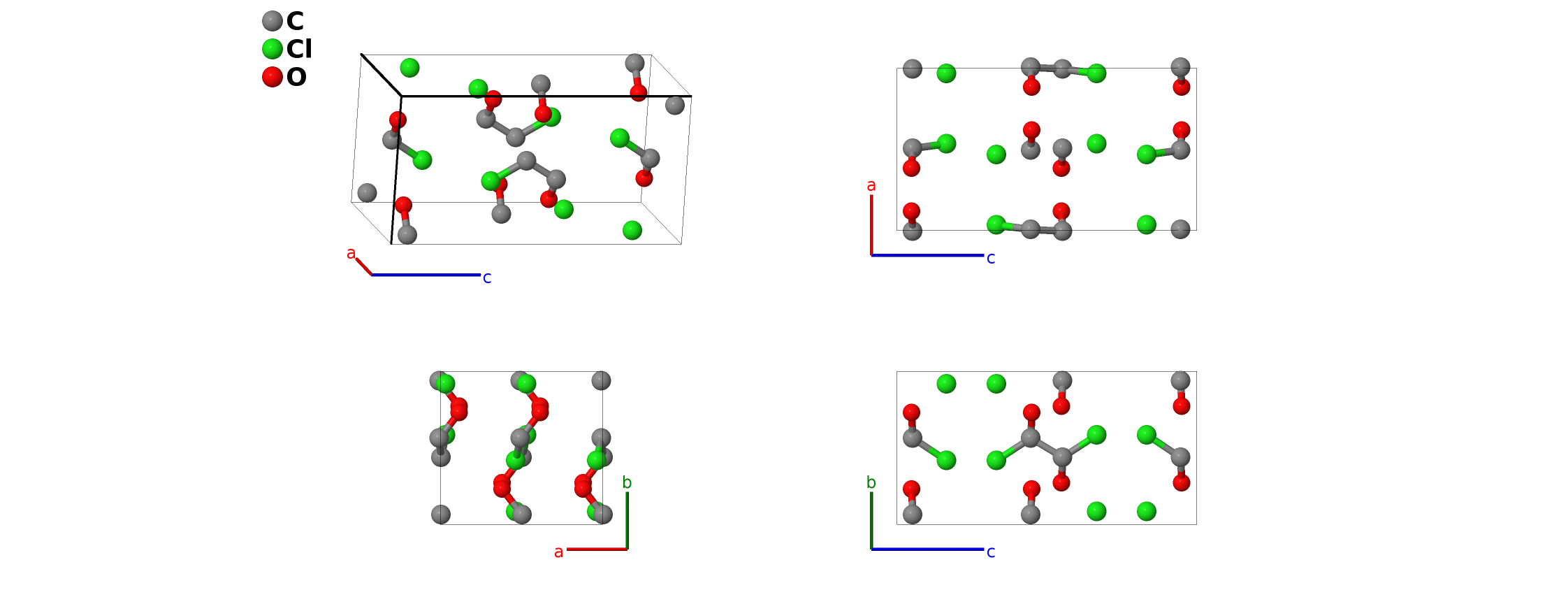

COCl Structure: ABC_oP24_61_c_c

Basis vectors

		Lattice coordinates		Cartesian coordinates	Wyckoff position	Atom type
$B_{1}$	=	$x_{1} a_{1} + y_{1} a_{2} + z_{1} a_{3}$	=	$a x_{1} \hat{x} + b y_{1} \hat{y} + c z_{1} \hat{z}$	(8c)	C I
$B_{2}$	=	$- (x_{1} - \frac{1}{2}) a_{1} - y_{1} a_{2} + (z_{1} + \frac{1}{2}) a_{3}$	=	$- a (x_{1} - \frac{1}{2}) \hat{x} - b y_{1} \hat{y} + c (z_{1} + \frac{1}{2}) \hat{z}$	(8c)	C I
$B_{3}$	=	$- x_{1} a_{1} + (y_{1} + \frac{1}{2}) a_{2} - (z_{1} - \frac{1}{2}) a_{3}$	=	$- a x_{1} \hat{x} + b (y_{1} + \frac{1}{2}) \hat{y} - c (z_{1} - \frac{1}{2}) \hat{z}$	(8c)	C I
$B_{4}$	=	$(x_{1} + \frac{1}{2}) a_{1} - (y_{1} - \frac{1}{2}) a_{2} - z_{1} a_{3}$	=	$a (x_{1} + \frac{1}{2}) \hat{x} - b (y_{1} - \frac{1}{2}) \hat{y} - c z_{1} \hat{z}$	(8c)	C I
$B_{5}$	=	$- x_{1} a_{1} - y_{1} a_{2} - z_{1} a_{3}$	=	$- a x_{1} \hat{x} - b y_{1} \hat{y} - c z_{1} \hat{z}$	(8c)	C I
$B_{6}$	=	$(x_{1} + \frac{1}{2}) a_{1} + y_{1} a_{2} - (z_{1} - \frac{1}{2}) a_{3}$	=	$a (x_{1} + \frac{1}{2}) \hat{x} + b y_{1} \hat{y} - c (z_{1} - \frac{1}{2}) \hat{z}$	(8c)	C I
$B_{7}$	=	$x_{1} a_{1} - (y_{1} - \frac{1}{2}) a_{2} + (z_{1} + \frac{1}{2}) a_{3}$	=	$a x_{1} \hat{x} - b (y_{1} - \frac{1}{2}) \hat{y} + c (z_{1} + \frac{1}{2}) \hat{z}$	(8c)	C I
$B_{8}$	=	$- (x_{1} - \frac{1}{2}) a_{1} + (y_{1} + \frac{1}{2}) a_{2} + z_{1} a_{3}$	=	$- a (x_{1} - \frac{1}{2}) \hat{x} + b (y_{1} + \frac{1}{2}) \hat{y} + c z_{1} \hat{z}$	(8c)	C I
$B_{9}$	=	$x_{2} a_{1} + y_{2} a_{2} + z_{2} a_{3}$	=	$a x_{2} \hat{x} + b y_{2} \hat{y} + c z_{2} \hat{z}$	(8c)	Cl I
$B_{10}$	=	$- (x_{2} - \frac{1}{2}) a_{1} - y_{2} a_{2} + (z_{2} + \frac{1}{2}) a_{3}$	=	$- a (x_{2} - \frac{1}{2}) \hat{x} - b y_{2} \hat{y} + c (z_{2} + \frac{1}{2}) \hat{z}$	(8c)	Cl I
$B_{11}$	=	$- x_{2} a_{1} + (y_{2} + \frac{1}{2}) a_{2} - (z_{2} - \frac{1}{2}) a_{3}$	=	$- a x_{2} \hat{x} + b (y_{2} + \frac{1}{2}) \hat{y} - c (z_{2} - \frac{1}{2}) \hat{z}$	(8c)	Cl I
$B_{12}$	=	$(x_{2} + \frac{1}{2}) a_{1} - (y_{2} - \frac{1}{2}) a_{2} - z_{2} a_{3}$	=	$a (x_{2} + \frac{1}{2}) \hat{x} - b (y_{2} - \frac{1}{2}) \hat{y} - c z_{2} \hat{z}$	(8c)	Cl I
$B_{13}$	=	$- x_{2} a_{1} - y_{2} a_{2} - z_{2} a_{3}$	=	$- a x_{2} \hat{x} - b y_{2} \hat{y} - c z_{2} \hat{z}$	(8c)	Cl I
$B_{14}$	=	$(x_{2} + \frac{1}{2}) a_{1} + y_{2} a_{2} - (z_{2} - \frac{1}{2}) a_{3}$	=	$a (x_{2} + \frac{1}{2}) \hat{x} + b y_{2} \hat{y} - c (z_{2} - \frac{1}{2}) \hat{z}$	(8c)	Cl I
$B_{15}$	=	$x_{2} a_{1} - (y_{2} - \frac{1}{2}) a_{2} + (z_{2} + \frac{1}{2}) a_{3}$	=	$a x_{2} \hat{x} - b (y_{2} - \frac{1}{2}) \hat{y} + c (z_{2} + \frac{1}{2}) \hat{z}$	(8c)	Cl I
$B_{16}$	=	$- (x_{2} - \frac{1}{2}) a_{1} + (y_{2} + \frac{1}{2}) a_{2} + z_{2} a_{3}$	=	$- a (x_{2} - \frac{1}{2}) \hat{x} + b (y_{2} + \frac{1}{2}) \hat{y} + c z_{2} \hat{z}$	(8c)	Cl I
$B_{17}$	=	$x_{3} a_{1} + y_{3} a_{2} + z_{3} a_{3}$	=	$a x_{3} \hat{x} + b y_{3} \hat{y} + c z_{3} \hat{z}$	(8c)	O I
$B_{18}$	=	$- (x_{3} - \frac{1}{2}) a_{1} - y_{3} a_{2} + (z_{3} + \frac{1}{2}) a_{3}$	=	$- a (x_{3} - \frac{1}{2}) \hat{x} - b y_{3} \hat{y} + c (z_{3} + \frac{1}{2}) \hat{z}$	(8c)	O I
$B_{19}$	=	$- x_{3} a_{1} + (y_{3} + \frac{1}{2}) a_{2} - (z_{3} - \frac{1}{2}) a_{3}$	=	$- a x_{3} \hat{x} + b (y_{3} + \frac{1}{2}) \hat{y} - c (z_{3} - \frac{1}{2}) \hat{z}$	(8c)	O I
$B_{20}$	=	$(x_{3} + \frac{1}{2}) a_{1} - (y_{3} - \frac{1}{2}) a_{2} - z_{3} a_{3}$	=	$a (x_{3} + \frac{1}{2}) \hat{x} - b (y_{3} - \frac{1}{2}) \hat{y} - c z_{3} \hat{z}$	(8c)	O I
$B_{21}$	=	$- x_{3} a_{1} - y_{3} a_{2} - z_{3} a_{3}$	=	$- a x_{3} \hat{x} - b y_{3} \hat{y} - c z_{3} \hat{z}$	(8c)	O I
$B_{22}$	=	$(x_{3} + \frac{1}{2}) a_{1} + y_{3} a_{2} - (z_{3} - \frac{1}{2}) a_{3}$	=	$a (x_{3} + \frac{1}{2}) \hat{x} + b y_{3} \hat{y} - c (z_{3} - \frac{1}{2}) \hat{z}$	(8c)	O I
$B_{23}$	=	$x_{3} a_{1} - (y_{3} - \frac{1}{2}) a_{2} + (z_{3} + \frac{1}{2}) a_{3}$	=	$a x_{3} \hat{x} - b (y_{3} - \frac{1}{2}) \hat{y} + c (z_{3} + \frac{1}{2}) \hat{z}$	(8c)	O I
$B_{24}$	=	$- (x_{3} - \frac{1}{2}) a_{1} + (y_{3} + \frac{1}{2}) a_{2} + z_{3} a_{3}$	=	$- a (x_{3} - \frac{1}{2}) \hat{x} + b (y_{3} + \frac{1}{2}) \hat{y} + c z_{3} \hat{z}$	(8c)	O I

Prototype	CClO
AFLOW prototype label	ABC_oP24_61_c_c_c-001
CCDC	1226359
Pearson symbol	oP24
Space group number	61
Space group symbol	$P b c a$
AFLOW prototype command	aflow --proto=ABC_oP24_61_c_c_c-001 --params= $a, b / a, c / a, x_{1}, y_{1}, z_{1}, x_{2}, y_{2}, z_{2}, x_{3}, y_{3}, z_{3}$

Encyclopedia of Crystallographic Prototypes

COCl Structure: ABC_oP24_61_c_c_c-001

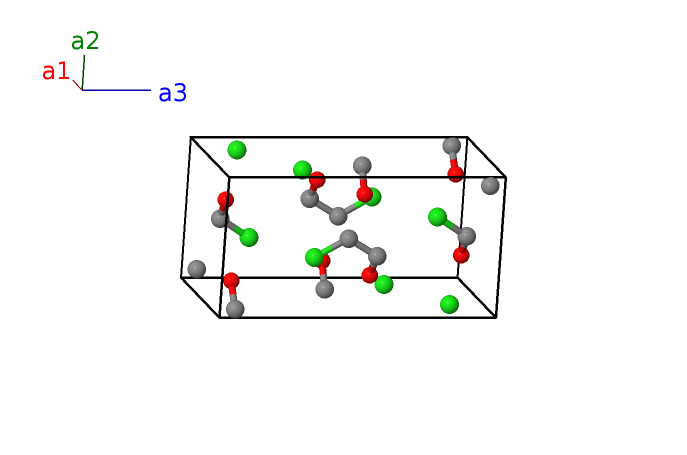

Simple Orthorhombic primitive vectors
