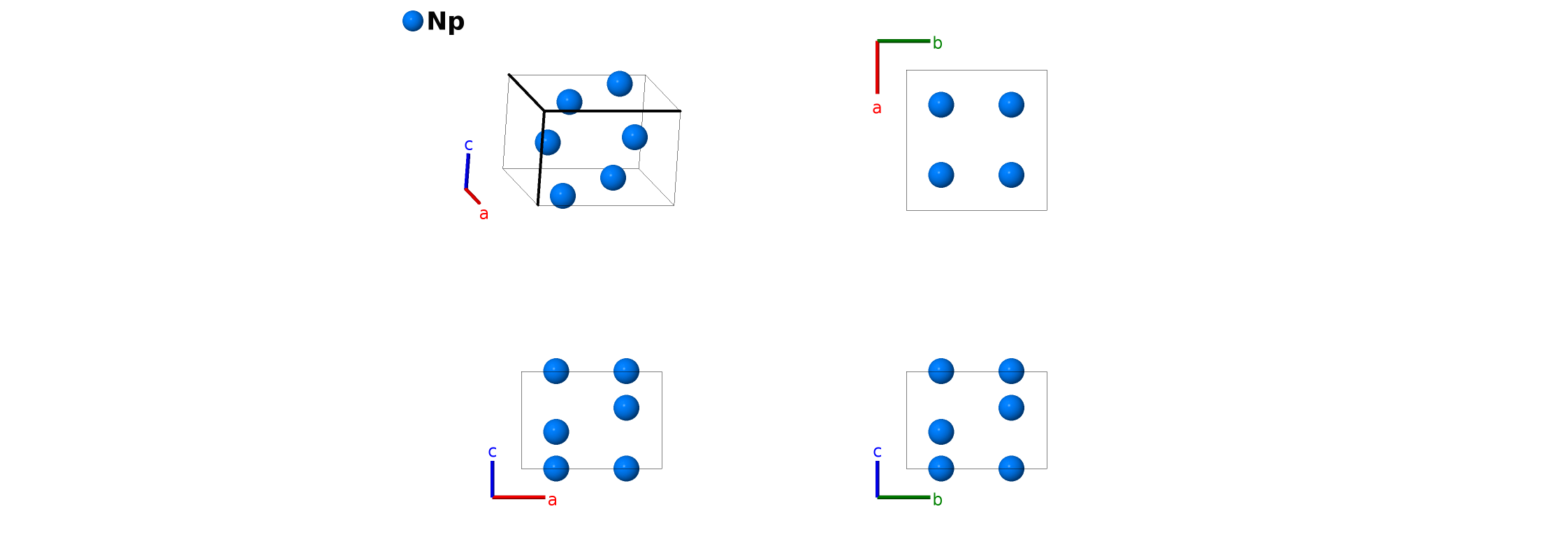

β-Np ($A_{d}$) Structure: A_tP4_129_ac-001
- Neptunium is found in three forms (Donohue, 1974):
- The ground state, $\alpha$–Np ($A_{c}$), stable below 280$^\circ$C,
- $\beta$–Np ($A_{d}$), stable in the range 280-577$^\circ$C, (this structure) and
- a body-centered cubic ($A2$) structure above 577$^\circ$C.
- When $z=1/2$ the atoms in this structure are in the $L1_{0}$ (CuAu) or the $A6$ (indium) structure. This structure is identical to the $B10$ (PbO) structure. Pearson's Handbook, along with the original papers, give the space group as $P42_{1}c$ #113. However, as noted by Structure Reports 15, 121 (1951), the correct space group is $P4/nmm$ #129. $P42_{1}c$ is a subgroup of $P4/nmm$.

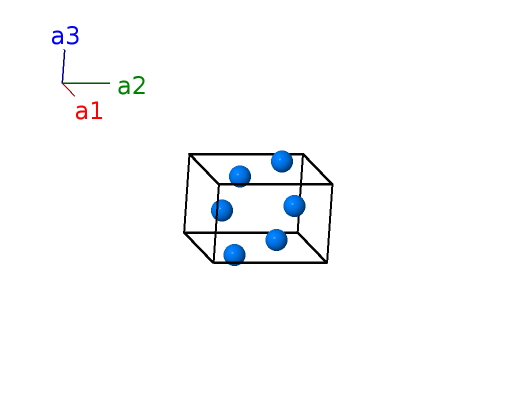

\[ \begin{array}{ccc}
\mathbf{a_{1}}&=&a \,\mathbf{\hat{x}}\\\mathbf{a_{2}}&=&a \,\mathbf{\hat{y}}\\\mathbf{a_{3}}&=&c \,\mathbf{\hat{z}}
\end{array}\]
Basis vectors
| Lattice coordinates | Cartesian coordinates | Wyckoff position | Atom type | |||
|---|---|---|---|---|---|---|
| $\mathbf{B_{1}}$ | = | $\frac{3}{4} \, \mathbf{a}_{1}+\frac{1}{4} \, \mathbf{a}_{2}$ | = | $\frac{3}{4}a \,\mathbf{\hat{x}}+\frac{1}{4}a \,\mathbf{\hat{y}}$ | (2a) | Np I |
| $\mathbf{B_{2}}$ | = | $\frac{1}{4} \, \mathbf{a}_{1}+\frac{3}{4} \, \mathbf{a}_{2}$ | = | $\frac{1}{4}a \,\mathbf{\hat{x}}+\frac{3}{4}a \,\mathbf{\hat{y}}$ | (2a) | Np I |
| $\mathbf{B_{3}}$ | = | $\frac{1}{4} \, \mathbf{a}_{1}+\frac{1}{4} \, \mathbf{a}_{2}+z_{2} \, \mathbf{a}_{3}$ | = | $\frac{1}{4}a \,\mathbf{\hat{x}}+\frac{1}{4}a \,\mathbf{\hat{y}}+c z_{2} \,\mathbf{\hat{z}}$ | (2c) | Np II |
| $\mathbf{B_{4}}$ | = | $\frac{3}{4} \, \mathbf{a}_{1}+\frac{3}{4} \, \mathbf{a}_{2}- z_{2} \, \mathbf{a}_{3}$ | = | $\frac{3}{4}a \,\mathbf{\hat{x}}+\frac{3}{4}a \,\mathbf{\hat{y}}- c z_{2} \,\mathbf{\hat{z}}$ | (2c) | Np II |
References
- W. H. Zachariasen, Crystal chemical studies of the 5f-series of elements. XVIII. Crystal structure studies of neptunium metal at elevated temperatures, Acta Cryst. 5, 664–667 (1952), doi:10.1107/S0365110X52001805.
- W. B. Pearson, The Crystal Chemistry and Physics of Metals and Alloys (Wiley Interscience, New York, London, Sydney, Tornoto, 1972).
- A. J. C. Wilson, ed., Structure Reports for 1951, vol. 15 (N.V.A. Oosthoek's Uitgevers, Utrecht, 1958).
Found in
- J. Donohue, The Structures of the Elements (Robert E. Krieger Publishing Company, New York, 1974).
First cited in
- M. J. Mehl, D. Hicks, C. Toher, O. Levy, R. M. Hanson, G. L. W. Hart, and S. Curtarolo, The AFLOW Library of Crystallographic Prototypes: Part 1, Comp. Mat. Sci. 136, S1-S828 (2017). (doi=10.1016/j.commatsci.2017.01.017)
Geometry files
Prototype Generator
aflow --proto=A_tP4_129_ac --params=$a,c/a,z_{2}$
