Encyclopedia of Crystallographic Prototypes

AFLOW Prototype: AB_hP2_187_a_d-001

This structure originally had the label AB_hP2_187_d_a. Calls to that address will be redirected here.

If you are using this page, please cite:
M. J. Mehl, D. Hicks, C. Toher, O. Levy, R. M. Hanson, G. L. W. Hart, and S. Curtarolo, The AFLOW Library of Crystallographic Prototypes: Part 1, Comp. Mat. Sci. 136, S1-S828 (2017). (doi=10.1016/j.commatsci.2017.01.017)

Links to this page

https://aflow.org/p/X4K0
or https://aflow.org/p/AB_hP2_187_a_d-001
or PDF Version

Tungsten Carbide (WC, $B_{h}$ ) Structure: AB_hP2_187_a_d-001

Prototype	CW
AFLOW prototype label	AB_hP2_187_a_d-001
Strukturbericht designation	$B_{h}$
ICSD	15406
Pearson symbol	hP2
Space group number	187
Space group symbol	$P \overline{6} m 2$
AFLOW prototype command	aflow --proto=AB_hP2_187_a_d-001 --params= $a, c / a$

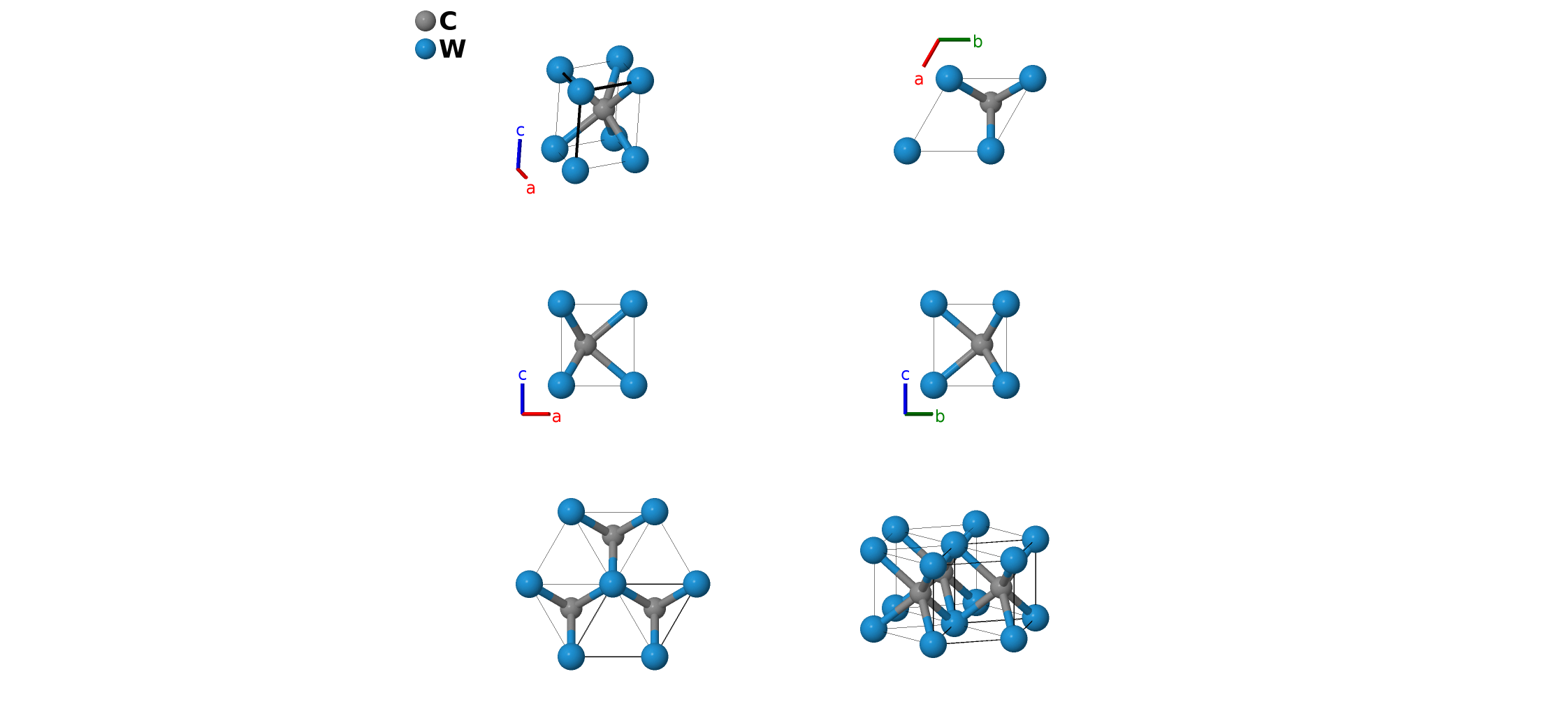

View the structure from several different perspectives
View the primitive and conventional cell

Other compounds with this structure

AlSn, BIr, MoC, MoP, NbS, OsC, RuC, TaS, TeZr, TiS, WN

Hexagonal primitive vectors

a_{1} a_{2} a_{3} = = = \frac{1}{2} a \hat{x} - \frac{3}{2} a \hat{y} \frac{1}{2} a \hat{x} + \frac{3}{2} a \hat{y} c \hat{z}

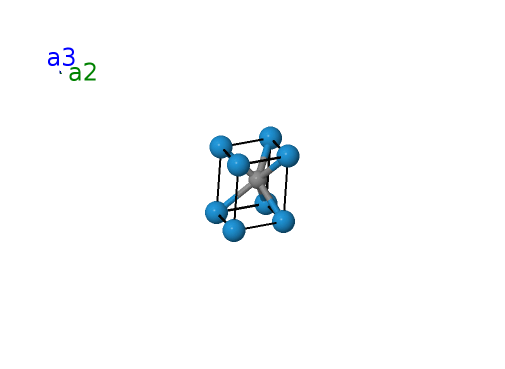

Picture of Structure; Click for Big Picture

Basis vectors

		Lattice coordinates		Cartesian coordinates	Wyckoff position	Atom type
$B_{1}$	=	$0$	=	$0$	(1a)	C I
$B_{2}$	=	$\frac{1}{3} a_{1} + \frac{2}{3} a_{2} + \frac{1}{2} a_{3}$	=	$\frac{1}{2} a \hat{x} + \frac{3}{6} a \hat{y} + \frac{1}{2} c \hat{z}$	(1d)	W I

References

J. Leciejewicz, A note on the structure of tungsten carbide, Acta Cryst. 14, 200 (1961), doi:10.1107/S0365110X6100067X.

Found in

W. B. Pearson, The Crystal Chemistry and Physics of Metals and Alloys (Wiley Interscience, New York, London, Sydney, Tornoto, 1972).
