Scheelite (CaWO$_{4}$, $H0_{4}$) Structure: AB4C_tI24_88_a_f_b-003
| Prototype | CaO$_{4}$W |
| AFLOW prototype label | AB4C_tI24_88_a_f_b-003 |
| Strukturbericht designation | $H0_{4}$ |
| Mineral name | scheelite |
| ICSD | 60547 |
| CCDC | 1624142 |
| Pearson symbol | tI24 |
| Space group number | 88 |
| Space group symbol | $I4_1/a$ |
| AFLOW prototype command |
aflow --proto=AB4C_tI24_88_a_f_b-003
--params=$a, \allowbreak c/a, \allowbreak x_{3}, \allowbreak y_{3}, \allowbreak z_{3}$ |
Other compounds with this structure
(Y, RE)NbO$_{4}$ (fergusonite), AgReO$_{4}$, BaLiF$_{4}$, BaMoO$_{4}$, BaWO$_{4}$, BiVO$_{4}$, CaMoO$_{4}$ (powellite), CaSeO$_{4}$, CdMoO$_{4}$, CsAlH$_{4}$, CsBrO$_{4}$, CsRuO$_{4}$, CsTcO$_{4}$, DyNbO$_{4}$, ErCrO$_{4}$, ErVO$_{4}$, EuMoO$_{4}$, EuWO$_{4}$, GeUO$_{4}$, HfGeO$_{4}$, HoCrO$_{4}$, HoVO$_{4}$, KIO$_{4}$, KOsO$_{4}$, KReO$_{4}$, KRuO$_{4}$, KTcO$_{4}$, KTlO$_{4}$, LaAsO$_{4}$, LaNbO$_{4}$, LiScO$_{4}$, LiYF$_{4}$, LiYbF$_{4}$, LuP$_{4}$, LuV$_{4}$, NaAlH$_{4}$, NaIO$_{4}$, NaReO$_{4}$, NaTcO$_{4}$, NdNbO$_{4}$, NdTaO$_{4}$, PbCrO$_{4}$, PbMoO$_{4}$ (stolzite), PbWO$_{4}$ (wulfenite), PrAsO$_{4}$, RbIO$_{4}$, RbOsO$_{4}$, RbReO$_{4}$, RbRuO$_{4}$, RbTcO$_{4}$, SmAsO$_{4}$, SmVO$_{4}$, SrCrO$_{4}$, SrMoO$_{4}$, SrWO$_{4}$, SrZnCl$_{4}$, SrZnF$_{4}$, TbCrO$_{4}$, ThGeO$_{4}$, TlIO$_{4}$, TlReO$_{4}$, TlTlO$_{4}$, TmVO$_{4}$, YAsO$_{4}$, YCrO$_{4}$, YliF$_{4}$, YMoO$_{4}$, YNbO$_{4}$, YTaO$_{4}$, YVO$_{4}$, YbMoO$_{4}$, YbPO$_{4}$, ZrGeO$_{4}$, ZrSiO$_{4}$
- (Ewald, 1931) originally gave this structure the Strukturbericht designation $H4$, but this was changed to $H0_{4}$ in (Gottfried, 1937).

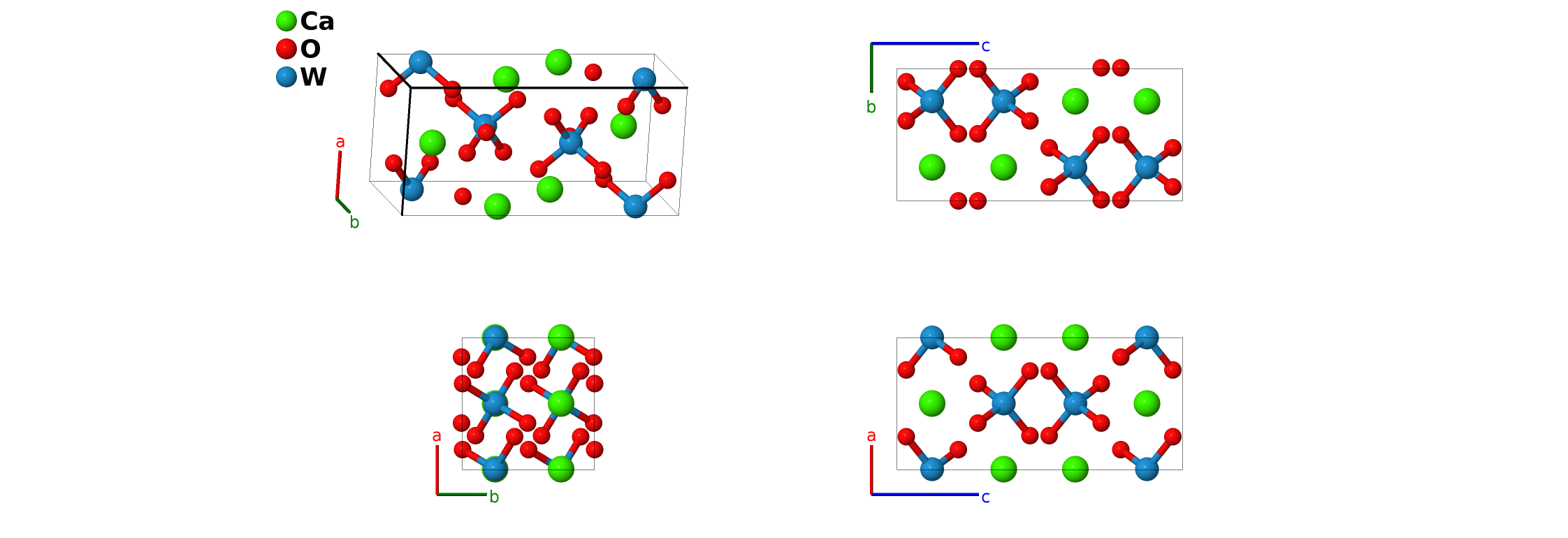

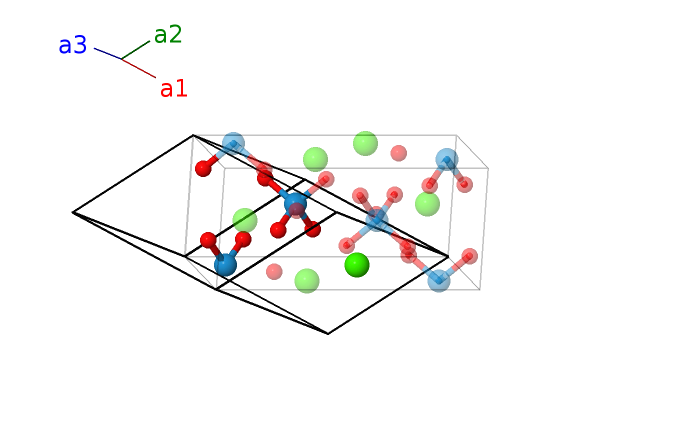

\[ \begin{array}{ccc}
\mathbf{a_{1}}&=&- \frac{1}{2}a \,\mathbf{\hat{x}}+\frac{1}{2}a \,\mathbf{\hat{y}}+\frac{1}{2}c \,\mathbf{\hat{z}}\\\mathbf{a_{2}}&=&\frac{1}{2}a \,\mathbf{\hat{x}}- \frac{1}{2}a \,\mathbf{\hat{y}}+\frac{1}{2}c \,\mathbf{\hat{z}}\\\mathbf{a_{3}}&=&\frac{1}{2}a \,\mathbf{\hat{x}}+\frac{1}{2}a \,\mathbf{\hat{y}}- \frac{1}{2}c \,\mathbf{\hat{z}}
\end{array}\]
Basis vectors
| Lattice coordinates | Cartesian coordinates | Wyckoff position | Atom type | |||
|---|---|---|---|---|---|---|
| $\mathbf{B_{1}}$ | = | $\frac{3}{8} \, \mathbf{a}_{1}+\frac{1}{8} \, \mathbf{a}_{2}+\frac{1}{4} \, \mathbf{a}_{3}$ | = | $\frac{1}{4}a \,\mathbf{\hat{y}}+\frac{1}{8}c \,\mathbf{\hat{z}}$ | (4a) | Ca I |
| $\mathbf{B_{2}}$ | = | $\frac{5}{8} \, \mathbf{a}_{1}+\frac{7}{8} \, \mathbf{a}_{2}+\frac{3}{4} \, \mathbf{a}_{3}$ | = | $\frac{1}{2}a \,\mathbf{\hat{x}}+\frac{1}{4}a \,\mathbf{\hat{y}}+\frac{3}{8}c \,\mathbf{\hat{z}}$ | (4a) | Ca I |
| $\mathbf{B_{3}}$ | = | $\frac{7}{8} \, \mathbf{a}_{1}+\frac{5}{8} \, \mathbf{a}_{2}+\frac{1}{4} \, \mathbf{a}_{3}$ | = | $\frac{1}{4}a \,\mathbf{\hat{y}}+\frac{5}{8}c \,\mathbf{\hat{z}}$ | (4b) | W I |
| $\mathbf{B_{4}}$ | = | $\frac{1}{8} \, \mathbf{a}_{1}+\frac{3}{8} \, \mathbf{a}_{2}+\frac{3}{4} \, \mathbf{a}_{3}$ | = | $\frac{1}{2}a \,\mathbf{\hat{x}}+\frac{1}{4}a \,\mathbf{\hat{y}}- \frac{1}{8}c \,\mathbf{\hat{z}}$ | (4b) | W I |
| $\mathbf{B_{5}}$ | = | $\left(y_{3} + z_{3}\right) \, \mathbf{a}_{1}+\left(x_{3} + z_{3}\right) \, \mathbf{a}_{2}+\left(x_{3} + y_{3}\right) \, \mathbf{a}_{3}$ | = | $a x_{3} \,\mathbf{\hat{x}}+a y_{3} \,\mathbf{\hat{y}}+c z_{3} \,\mathbf{\hat{z}}$ | (16f) | O I |
| $\mathbf{B_{6}}$ | = | $\left(- y_{3} + z_{3} + \frac{1}{2}\right) \, \mathbf{a}_{1}- \left(x_{3} - z_{3}\right) \, \mathbf{a}_{2}- \left(x_{3} + y_{3} - \frac{1}{2}\right) \, \mathbf{a}_{3}$ | = | $- a x_{3} \,\mathbf{\hat{x}}- a \left(y_{3} - \frac{1}{2}\right) \,\mathbf{\hat{y}}+c z_{3} \,\mathbf{\hat{z}}$ | (16f) | O I |
| $\mathbf{B_{7}}$ | = | $\left(x_{3} + z_{3} + \frac{1}{2}\right) \, \mathbf{a}_{1}- \left(y_{3} - z_{3}\right) \, \mathbf{a}_{2}+\left(x_{3} - y_{3}\right) \, \mathbf{a}_{3}$ | = | $- a \left(y_{3} + \frac{1}{4}\right) \,\mathbf{\hat{x}}+a \left(x_{3} + \frac{1}{4}\right) \,\mathbf{\hat{y}}+c \left(z_{3} + \frac{1}{4}\right) \,\mathbf{\hat{z}}$ | (16f) | O I |
| $\mathbf{B_{8}}$ | = | $\left(- x_{3} + z_{3} + \frac{1}{2}\right) \, \mathbf{a}_{1}+\left(y_{3} + z_{3} + \frac{1}{2}\right) \, \mathbf{a}_{2}+\left(- x_{3} + y_{3} + \frac{1}{2}\right) \, \mathbf{a}_{3}$ | = | $a \left(y_{3} + \frac{1}{4}\right) \,\mathbf{\hat{x}}- a \left(x_{3} - \frac{1}{4}\right) \,\mathbf{\hat{y}}+c \left(z_{3} + \frac{1}{4}\right) \,\mathbf{\hat{z}}$ | (16f) | O I |
| $\mathbf{B_{9}}$ | = | $- \left(y_{3} + z_{3}\right) \, \mathbf{a}_{1}- \left(x_{3} + z_{3}\right) \, \mathbf{a}_{2}- \left(x_{3} + y_{3}\right) \, \mathbf{a}_{3}$ | = | $- a x_{3} \,\mathbf{\hat{x}}- a y_{3} \,\mathbf{\hat{y}}- c z_{3} \,\mathbf{\hat{z}}$ | (16f) | O I |
| $\mathbf{B_{10}}$ | = | $\left(y_{3} - z_{3} + \frac{1}{2}\right) \, \mathbf{a}_{1}+\left(x_{3} - z_{3}\right) \, \mathbf{a}_{2}+\left(x_{3} + y_{3} + \frac{1}{2}\right) \, \mathbf{a}_{3}$ | = | $a x_{3} \,\mathbf{\hat{x}}+a \left(y_{3} + \frac{1}{2}\right) \,\mathbf{\hat{y}}- c z_{3} \,\mathbf{\hat{z}}$ | (16f) | O I |
| $\mathbf{B_{11}}$ | = | $- \left(x_{3} + z_{3} - \frac{1}{2}\right) \, \mathbf{a}_{1}+\left(y_{3} - z_{3}\right) \, \mathbf{a}_{2}- \left(x_{3} - y_{3}\right) \, \mathbf{a}_{3}$ | = | $a \left(y_{3} - \frac{1}{4}\right) \,\mathbf{\hat{x}}- a \left(x_{3} - \frac{1}{4}\right) \,\mathbf{\hat{y}}- c \left(z_{3} - \frac{1}{4}\right) \,\mathbf{\hat{z}}$ | (16f) | O I |
| $\mathbf{B_{12}}$ | = | $\left(x_{3} - z_{3} + \frac{1}{2}\right) \, \mathbf{a}_{1}- \left(y_{3} + z_{3} - \frac{1}{2}\right) \, \mathbf{a}_{2}+\left(x_{3} - y_{3} + \frac{1}{2}\right) \, \mathbf{a}_{3}$ | = | $- a \left(y_{3} - \frac{1}{4}\right) \,\mathbf{\hat{x}}+a \left(x_{3} + \frac{1}{4}\right) \,\mathbf{\hat{y}}- c \left(z_{3} - \frac{1}{4}\right) \,\mathbf{\hat{z}}$ | (16f) | O I |
References
- R. M. Hazen, L. W. Finger, and J. W. E. Mariathasan, High-pressure crystal chemistry of scheelite-type tungstates and molybdates, J. Phys. Chem. Solids 46, 253–263 (1985), doi:10.1016/0022-3697(85)90039-3.
- P. P. Ewald and C. Hermann, eds., Strukturbericht 1913-1928 (Akademische Verlagsgesellschaft M. B. H., Leipzig, 1931).
- C. Gottfried and F. Schossberger, eds., Strukturbericht Band III 1933-1935 (Akademische Verlagsgesellschaft M. B. H., Leipzig, 1937).
Found in
- Y. Zhang, N. A. W. Holzwarth, and R. T. Williams, Electronic band structures of the scheelite materials CaMoO$_{4}$, CaWO$_{4}$, PbMoO$_{4}$, and PbWO$_{4}$, Phys. Rev. B 57, 12738–12750 (1988), doi:10.1103/PhysRevB.57.12738.
First cited in
- D. Hicks, M.J. Mehl, M. Esters, C. Oses, O. Levy, G.L.W. Hart, C. Toher, and S. Curtarolo, The AFLOW Library of Crystallographic Prototypes: Part 3, Comp. Mat. Sci. 199, 110450 (2021). (doi=10.1016/j.commatsci.2021.110450)
Geometry files
Prototype Generator
aflow --proto=AB4C_tI24_88_a_f_b --params=$a,c/a,x_{3},y_{3},z_{3}$
