Encyclopedia of Crystallographic Prototypes

AFLOW Prototype: AB12C3_cI32_229_a_h_b-001

This structure originally had the label AB12C3_cI32_229_a_h_b. Calls to that address will be redirected here.

If you are using this page, please cite:
M. J. Mehl, D. Hicks, C. Toher, O. Levy, R. M. Hanson, G. L. W. Hart, and S. Curtarolo, The AFLOW Library of Crystallographic Prototypes: Part 1, Comp. Mat. Sci. 136, S1-S828 (2017). (doi=10.1016/j.commatsci.2017.01.017)

Links to this page

https://aflow.org/p/L6PB
or https://aflow.org/p/AB12C3_cI32_229_a_h_b-001
or PDF Version

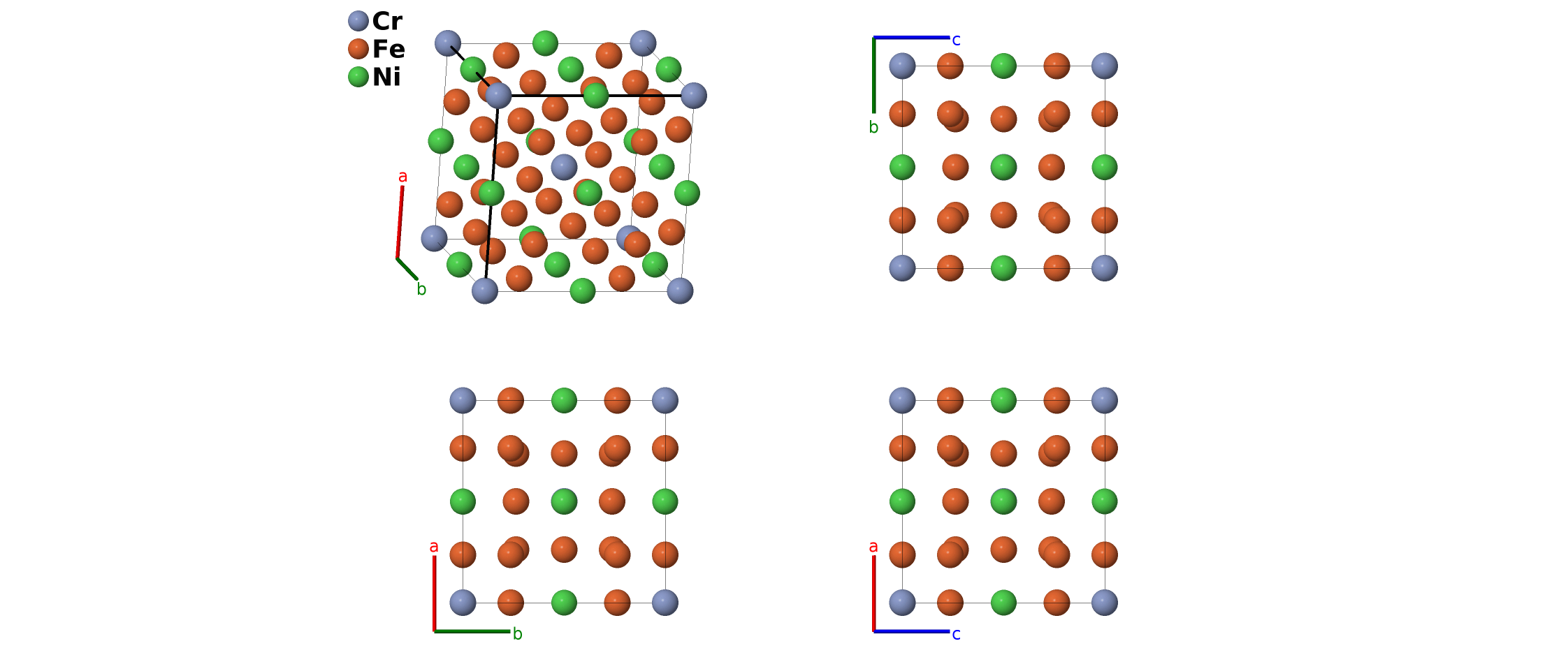

Model of Austenite Structure (cI32): AB12C3_cI32_229_a_h_b-001





  :









Prototype CrFeNi
AFLOW prototype label AB12C3_cI32_229_a_h_b-001
ICSD none
Pearson symbol cI32
Space group number 229
Space group symbol
AFLOW prototype command aflow --proto=AB12C3_cI32_229_a_h_b-001
--params=

  • Austenitic steels are alloys of iron and other metals with an averaged face-centered cubic structure. This model represents one approximation for an austenite steel. If we set , the atoms are on the sites of an fcc lattice.

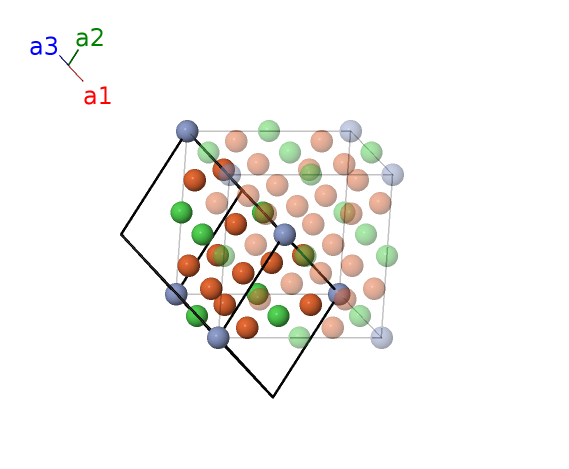

Basis vectors

Lattice coordinates Cartesian coordinates Wyckoff position Atom type
= = (2a) Cr I
= = (6b) Ni I
= = (6b) Ni I
= = (6b) Ni I
= = (24h) Fe I
= = (24h) Fe I
= = (24h) Fe I
= = (24h) Fe I
= = (24h) Fe I
= = (24h) Fe I
= = (24h) Fe I
= = (24h) Fe I
= = (24h) Fe I
= = (24h) Fe I
= = (24h) Fe I
= = (24h) Fe I

References

  • M. J. Mehl, D. Hicks, C. Toher, O. Levy, R. M. Hanson, G. Hart, and S. Curtarolo, The AFLOW library of crystallographic prototypes: part 1, Comput. Mater. Sci. 136, S1–S828 (2017), doi:10.1016/j.commatsci.2017.01.017.
